Specifications

WHEEL SIZE: 20″ wheels
SPEEDS: Continuously Variable 380%
WEIGHT: 34.98 kg (77.12 lb)
FOLDING SIZE: 176 x 40.5 x 83 cm (69.3″ x 15.9″ x 32.7″)
FOLDING TIME: 5 sec
FRAME SIZES: One size
GEAR INCHES: 26″ – 99″ (2.08 – 7.91 m)
DISTANCE: SEATPOST TO HANDLEBAR: Min: 490 mm (19.3″) Max: 590 mm (22″)
DISTANCE: SADDLE TO PEDAL: Min: 690 mm (27.2″) Max: 1050 mm (41.3″)
SUGGESTED RIDER HEIGHT: 150 – 195 cm (4’11” – 6’5″)
MAX GROSS VEHICLE WEIGHT: 200 kg (440 lb)
MAX RIDER WEIGHT: 120 kg (264 lb)

FRAME

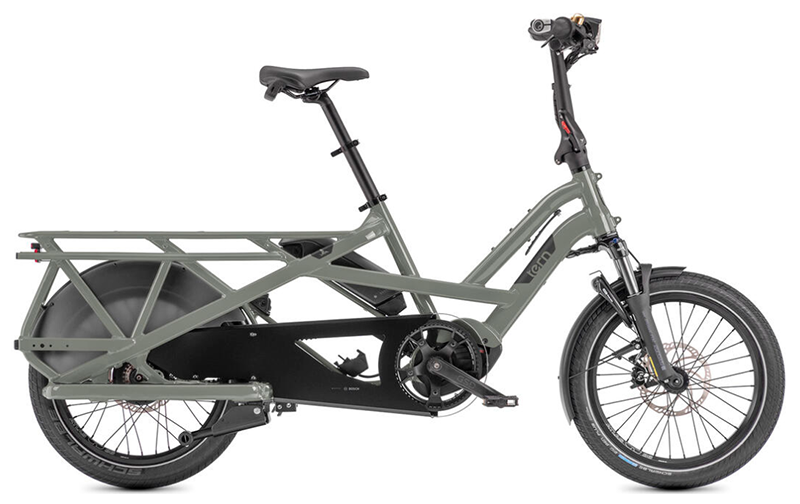

FRAME: Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
FORK: Suntour custom for Tern, 1.5″ tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg

COCKPIT
HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM: Tern Andros, adjustable, forged construction, patented technology
HEADSET: Tern Flux Pro Taper, 1.5″, angular contact bearings, Physis integrated
HANDLEBAR: Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE: Ergon
SADDLE: Tern GSD by Velo, with rear handle
SEATPOST: Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc

BRAKES
FRONT BRAKE: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
REAR BRAKE: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
BRAKE LEVERS: Magura MT5 e-stop, hydraulic, with brake sensor

WHEELS
FRONT HUB: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
REAR HUB: Enviolo SP, 380% continuously variable range, Boost
SPOKES AND NIPPLES: Stainless steel, 13G
RIMS: Tern Atlas, ultra wide 36 mm, dual reinforced joint
TIRES: F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

TRANSMISSION
SHIFTER(S): Enviolo, Twist
CRANKSET: Tern GSD custom, Gates CDX CNC machined beltring
CASSETTE/FREEWHEEL: Gates CDX, precision CNC machined cog
BOTTOM BRACKET: Motor integrated
CHAIN: Gates Carbon Drive CDX belt
PEDALS: Urban with non-slip surface, sealed bearings
SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM
MOTOR: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY: Bosch Dual Battery system, 500 Wh or 1000 Wh
DISPLAY: Bosch Purion, 4 mode selectable, walk assist
RANGE: 500 Wh: 50-101 km (31-63 mi); 1000 Wh: 102-206 km (63-128 mi)
CHARGER: 220V, 4A (EU); 100-240V, 4A (US)

BELLS & WHISTLES
BELL: Pitch Plus, brass
CHAINGUARD: Tern Custom, full chain cover
KICKSTAND: Atlas Lockstand, w/ remote unlock, patented technology
LUGGAGE SOCKET: Combo Mount
FRONT LIGHT: Tern Valo Direct, 190 lumens
REAR LIGHT: RearStop Brake Light, Always on brake light
FENDERS: Integrated Wheel Guard, AL6061, w/ Side Skirt
RACK(S): Frame integrated, heavy duty design
ACCESSORY: ABUS, keyed-alike with Bosch battery
